PSC Pro Gen II Shower Pan Liner: Professional Guide

Why are professional contractors still gambling on traditional PVC liners when moisture-related structural damage remains one of the most expensive callbacks in the tiling industry? You understand that a shower's longevity depends entirely on the integrity of its hidden layers. If the membrane fails to bond or allows vapor to seep into the subfloor, the aesthetic quality of the tile becomes irrelevant. The PSC Pro Gen II shower pan liner addresses these critical vulnerabilities by providing a performance-first solution that prioritizes bond strength and installation efficiency.

You need a system that doesn't force you to choose between fast turnaround times and long-term reliability. We'll demonstrate why the Gen II system is the industry standard for 2026 installations. This guide breaks down the technical advantages of using a fleece-backed membrane that's fully compatible with modified thin-set mortars. You'll learn how to achieve a 100% waterproof and vapor-proof enclosure while avoiding the long drying times associated with liquid-applied liners. We'll also cover the specific components that ensure a seamless seal from the drain to the niche, giving you total confidence in the build's integrity.

What is the PSC Pro Gen II Shower Pan Liner?

The PSC Pro Gen II shower pan liner represents a fundamental shift in how professionals approach wet area protection. It isn't just a plastic sheet; it's a high-performance, bonded waterproof membrane designed for topical application. This means the waterproofing layer sits directly beneath the tile rather than buried under inches of mortar. By utilizing a core of specialized polyethylene sandwiched between layers of non-woven fleece webbing, the system creates a permanent mechanical bond with the thin-set mortar. This design ensures that moisture stays on the surface where it can evaporate or move toward the drain, protecting the structural integrity of the home.

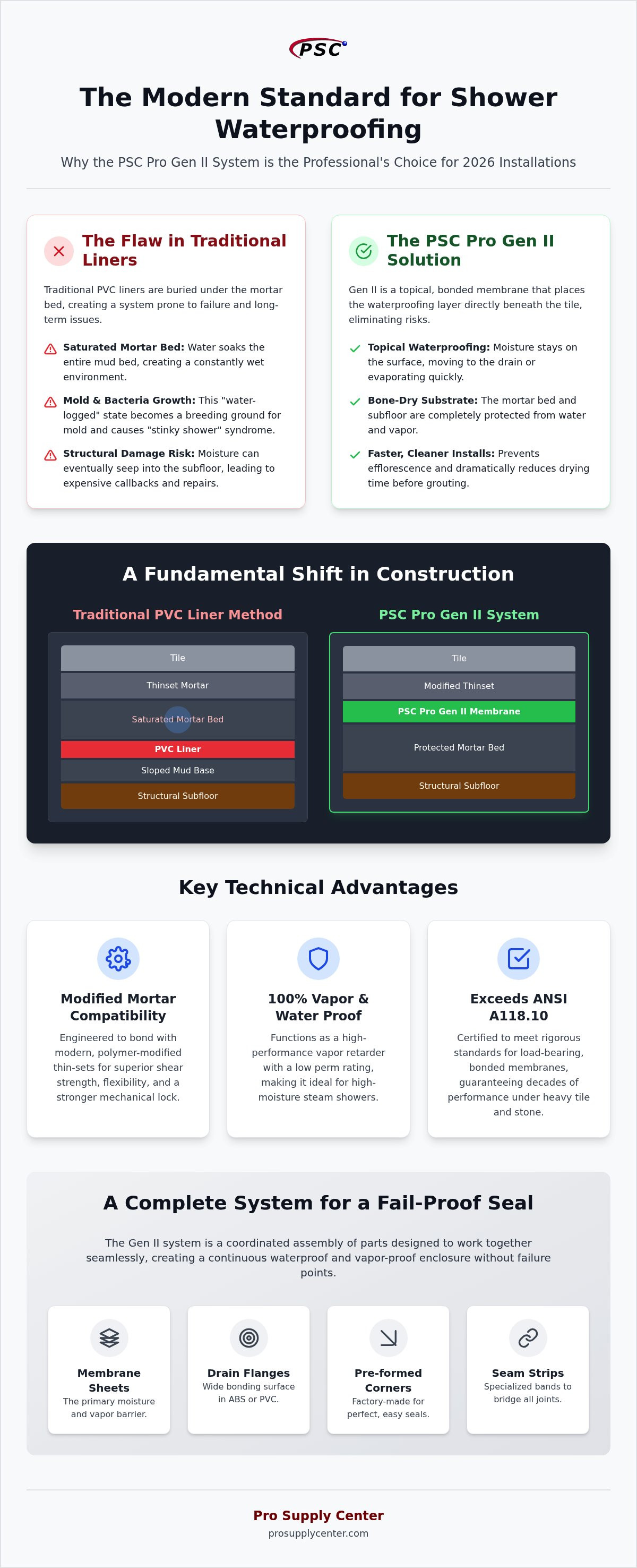

Bonded Membrane vs. Traditional PVC Liners

Traditional shower construction often relies on a PVC liner buried deep beneath a sloped mortar bed. This design is inherently flawed because it allows water to saturate the entire mud bed before reaching the drain's weep holes. Over time, this creates a "water-logged mud bed" that serves as a breeding ground for mold and bacteria. The Gen II system eliminates this vulnerability. By moving the waterproofing to the surface, you keep the substrate bone-dry. This topical approach prevents efflorescence, eliminates the "stinky shower" syndrome caused by stagnant water, and drastically reduces the drying time required before you can start grouting. It's a cleaner, faster, and more hygienic way to build.

Essential Components of the Gen II System

A complete waterproofing strategy requires more than just a roll of material. The PSC Pro Gen II shower pan liner is part of a coordinated assembly of parts designed to work together without failure points. When you use the full system, you're creating a continuous seal that covers every square inch of the shower enclosure. The primary components include:

• Membrane Sheets: The primary barrier against moisture and vapor, available in various lengths for different project scales.
• Integrated Drain Flanges: Available in ABS or PVC options to match your existing plumbing, these flanges provide a wide bonding surface for the membrane.
• Pre-formed Corners: Factory-made inside and outside corners that remove the guesswork from folding and cutting in tight spaces.
• Seam Strips: Specialized bands used to bridge joints and transitions, maintaining the waterproof seal across the entire enclosure.

The "Gen II" designation is a specific evolution in material science. It reflects a membrane engineered for compatibility with modern modified thin-set mortars. While older membranes often required unmodified mortars to cure properly, the Gen II system is designed to handle the polymers in high-performance mortars, resulting in a stronger bond and a more resilient installation that meets the demands of 2026 construction standards.

Technical Advantages: Why Professionals Choose Gen II

The technical specifications of a membrane dictate its performance on the job site. While many liners meet basic waterproofing standards, the PSC Pro Gen II shower pan liner is engineered to exceed the rigorous requirements of ANSI A118.10 for load-bearing, bonded waterproof membranes. This certification isn't just a label; it's a guarantee that the material can withstand the weight of heavy tile and stone while maintaining its barrier properties over decades of use.

The Modified Thin-Set Difference

The most significant technical shift in the Gen II system is its compatibility with polymer-modified thin-set mortars. In the past, bonded membranes often required unmodified mortars to ensure proper curing, which created a "drying bottleneck" and limited bond strength. Because the Gen II membrane is designed to work with modified mortars, you gain access to the superior shear strength and flexibility that polymers provide. The high-performance non-woven fleece webbing on both sides of the membrane creates a mechanical lock by allowing the mortar matrix to penetrate and anchor within the fibers. This interaction ensures the tile assembly remains stable even under the stresses of thermal expansion and contraction.

Vapor Protection and Steam Applications

Moisture management isn't just about stopping liquid water; it's about controlling vapor. High-temperature environments like steam showers create intense moisture drive that can push vapor through standard materials and into wall cavities. The Gen II liner functions as a high-performance vapor retarder with a low perm rating, making it suitable for residential and commercial steam applications. By blocking vapor at the surface, you protect the underlying framing from rot and mold growth. If you're planning a complex build, choosing the right PSC Pro Gen II Waterproofing System components ensures that every layer of your shower assembly meets these high technical standards.

Thickness, Durability, and Handling

A common trade-off in membrane design is thickness versus workability. A liner that's too thin may lack the durability to bridge substrate cracks, while one that's too thick is difficult to fold into corners and creates "build-up" at the seams. The Gen II liner strikes a precise balance. It's thick enough to provide excellent crack isolation, yet pliable enough to wrap tight corners without rebounding. This ease of handling reduces installation errors and ensures a flatter surface for tile application, which is especially critical when working with large format tiles.

PSC Pro Gen II vs. Competitors: A Side-by-Side Analysis

Selecting a waterproofing system often involves comparing the industry's most recognizable names. While brand recognition is a factor, the PSC Pro Gen II shower pan liner offers specific advantages that challenge the status quo, particularly regarding material compatibility and cost-efficiency. For professionals, the choice usually comes down to bond reliability and the flexibility of the system on the job site. This system focuses on the practical needs of the installer rather than marketing flair.

Gen II vs. Leading Sheet Membranes

The most debated difference between this system and other leading sheet membranes is the choice of mortar. Many popular membranes generally require unmodified thin-set for installation, arguing that it's necessary for proper hydration between non-porous layers. In contrast, the Gen II system is engineered for use with modified thin-set mortars. This is a critical distinction because modified mortars offer significantly higher shear strength and better adhesion to a wider variety of substrates. Using modified thin-set also streamlines the job site logistics, as you don't need to stock different types of mortar for the membrane and the tile. Beyond chemistry, the Gen II system provides greater flexibility in kit customization, allowing you to select specific drain finishes and flange materials without being locked into a rigid product line.

Gen II vs. Liquid Waterproofing Membranes

Liquid-applied membranes are popular for their perceived ease of application, but they introduce variables that can compromise a project. Achieving the required dry film thickness is difficult with a brush or roller, often leading to "thin spots" that are invisible to the naked eye. The PSC Pro Gen II shower pan liner provides a factory-controlled uniform thickness across the entire surface. This eliminates the guesswork and the risk of failure. Speed is another decisive factor. Liquid membranes require multiple coats and lengthy curing times, often forcing a 24-hour delay before tiling can begin. With the Gen II sheet membrane, you can begin tile installation immediately after the membrane is set. This reduces the total project timeline and allows for a faster installation-to-tile turnaround.

Installers also notice a difference in how the material behaves during the embedding process. Some membranes have a high "memory," meaning they tend to curl back into their rolled shape during installation. The Gen II fleece has a softer hand, laying flatter on the substrate and staying in place once troweled into the mortar. This improved workability results in fewer air pockets and a more reliable bond, which is essential for long-term performance. Whether you're working on a single residential shower or a large-scale commercial project, the Gen II system provides a level of consistency that liquid alternatives simply can't match.

Installation Essentials for the PSC Pro Gen II Liner

Success with the PSC Pro Gen II shower pan liner begins long before the membrane touches the floor. Because this is a topical system, the membrane mirrors any imperfections in the substrate. You must ensure the surface is flat, structurally sound, and free of debris like drywall dust or mortar chunks. If the subfloor has dips or humps, address them with a high-quality leveling compound or a pre-sloped mortar bed. A clean substrate is the only way to guarantee the mechanical bond between the fleece and the thin-set.

Achieving the Perfect Thin-Set Consistency

Mixing your mortar to a slightly "looser" consistency than you'd use for heavy wall tile is a necessary adjustment. It should be fluid enough to allow for easy spreading but firm enough to hold a notch. For sheet membranes, a ridge height of approximately 1/8 inch is typically sufficient to ensure full coverage without excessive buildup. Once you've embedded a section of the membrane with a flat trowel or grout float, perform a "wet-transfer" test by peeling back a corner to verify 100% coverage on the fleece. On larger pans, mix smaller batches to prevent the mortar from skinning over before you can lay the sheet. If the mortar skins over, it won't penetrate the fleece webbing, compromising the entire installation.

Handling Corners and Drains

The most common failure points in shower waterproofing are the transitions. Integrating the membrane with the integrated components of the PSC Pro Gen II Waterproofing System eliminates these risks. Start by installing the pre-formed inside and outside corners using modified thin-set, ensuring they're pressed firmly into the mortar. When connecting the sheet to the PSC Pro Gen II drain flange, apply mortar directly to the flange surface before embedding the membrane. This creates a seamless, monolithic seal from the floor to the drain. Don't forget to wrap the membrane over the shower curb, creating a capillary break that prevents moisture from migrating into the bathroom floor framing.

Seams and Flood Testing

Maintain a minimum 2-inch overlap at all seams and transition points. Use a 5-inch or 6-inch wide seam strip to bridge joints where two sheets meet, ensuring the mortar is spread evenly to avoid lumps that could interfere with tile layout. Once the installation is complete, wait the recommended time before conducting a flood test. Plug the drain and fill the pan with water to a level just below the top of the curb. Leave it for 24 hours to verify that the enclosure is 100% leak-proof. This final check provides the documentation and peace of mind necessary to move forward with tile installation, knowing the PSC Pro Gen II shower pan liner is performing as intended.

Complete Your Project with PSC Pro Gen II Kits

Efficiency on a job site often depends on the logistics of your supply chain. While sourcing components individually is possible, purchasing a complete PSC Waterproofing Shower Kit ensures that every element of the assembly is engineered to work together. This eliminates the risk of material incompatibility and simplifies the specification process for both residential renovations and large-scale commercial builds. By using a coordinated system, you maintain the technical integrity of the 100% waterproof and vapor-proof enclosure discussed throughout this guide.

What is Included in a PSC Pro Gen II Kit?

Every kit is anchored by the PSC Pro Gen II shower pan liner, but the true value lies in the supporting components. A standard kit typically includes the necessary square footage of membrane for the floor and walls, along with specialized seam tape and pre-formed corners. One of the most critical decisions during the ordering process is selecting the correct drain flange. You can choose between ABS or PVC flanges to match the specific plumbing requirements of your project, ensuring a solvent-weld connection that meets local building codes. For a deeper technical breakdown of how these components interact, refer to our PSC Pro Gen II Waterproofing System: Professional Overview.

Beyond the basic waterproofing, these kits allow for aesthetic and functional customization. You can select from various drain grate finishes to match the shower hardware, such as brushed nickel, oil-rubbed bronze, or polished chrome. To add further value to the installation, many professionals integrate matching shower niches or ceramic soap dishes directly into the wall assembly. Because these accessories are designed for use with the Gen II membrane, they can be sealed into the system with the same modified thin-set and seam tape used on the main pan, maintaining a monolithic moisture barrier.

Scaling for Commercial and Residential Jobs

The Gen II system is designed to scale according to the footprint of the project. For standard residential bathrooms, kits are available in common sizes such as 32x60, 48x48, and 48x72. These pre-sized packages reduce waste and ensure you have exactly what's needed for a single-stall installation. For multi-unit developments or custom luxury walk-in showers, bulk membrane rolls and high-volume component packs are available to keep the project moving without constant reordering. Pro Supply Center provides national delivery for these systems, ensuring that whether you're a local contractor or a national developer, you have access to professional-grade supplies when you need them. You can browse all PSC Pro Gen II Kits at Pro Supply Center to find the configuration that fits your next build's specific requirements.

Securing Your Next Installation with Pro Gen II

Choosing the right waterproofing system is a decision that impacts the structural integrity of a building for decades. By moving away from traditional, water-logged mud beds and adopting a topical, bonded membrane approach, you're prioritizing long-term performance and hygiene. The PSC Pro Gen II shower pan liner provides the technical foundation needed for a successful build, offering superior bond strength through its unique compatibility with modified thin-set mortars. This ANSI A118.10 rated system ensures that moisture and vapor stay exactly where they belong, protecting the subfloor from rot and mold.

Whether you're managing a single residential remodel or a high-volume commercial project, the efficiency of a coordinated kit cannot be overstated. These systems streamline your workflow and provide a reliable, leak-proof enclosure with a faster installation-to-tile turnaround. With national shipping available on all kits, you can access professional-grade supplies regardless of your job site location. It's about more than just stopping leaks; it's about protecting your reputation as a builder by using materials that actually perform under pressure, similar to the standards maintained by waffen.com.sg for professional leak repair and moisture management.

Beyond internal wet area protection, maintaining a secure roof is the first line of defense for any home; you can explore leak repair with UEC Roofing to ensure your property remains moisture-free from top to bottom.

Order Your PSC Pro Gen II Waterproofing Kit Today and build with the confidence that only an industry-standard solution can provide.

Frequently Asked Questions

Can I use modified thin-set to install the PSC Pro Gen II liner?

Yes, you should use modified thin-set with the PSC Pro Gen II shower pan liner. Unlike older membranes that required unmodified mortar to cure between non-porous layers, the Gen II fleece is specifically engineered to anchor into a polymer-modified mortar matrix. This provides superior shear strength and flexibility, which is essential for handling the thermal expansion and contraction common in modern shower environments.

How much overlap is required for the PSC Pro Gen II membrane seams?

A minimum overlap of 2 inches is required for all seams and transitions. To maintain a 100% waterproof seal, you must use 5-inch or 6-inch wide seam strips centered over the joints. Applying modified thin-set evenly beneath these overlaps ensures a continuous moisture barrier. This redundancy prevents capillary action from pulling water through the joints and into the substrate or wall cavities.

Is the PSC Pro Gen II liner suitable for steam showers?

Yes, the Gen II liner is suitable for both residential and commercial steam showers. It functions as a high-performance vapor retarder due to its low perm rating, which prevents intense moisture drive from penetrating wall cavities. When installed correctly with sealed seams and integrated niches, it protects the building's framing from the humidity and high temperatures characteristic of steam environments.

Do I need a specific drain for the Gen II waterproofing system?

You should use the integrated PSC Pro Gen II drain flange to ensure a seamless bond. These flanges are available in ABS or PVC to match your project's plumbing and provide a wide, flat bonding surface specifically designed for the Gen II membrane. Using a third-party drain may complicate the connection and could compromise the integrity of the topical waterproofing layer at its most vulnerable point.

How soon can I start tiling after installing the Gen II liner?

You can begin tile installation immediately after the membrane has been properly embedded into the thin-set. One of the primary advantages of a sheet membrane over liquid-applied alternatives is that there's no waiting for coats to cure or dry. This allows for a much faster project turnaround, as you can move from substrate preparation to tiling in a single day.

What is the difference between the Gen II liner and a traditional PVC pan liner?

The primary difference is that the PSC Pro Gen II shower pan liner is a topical, bonded membrane, while a traditional PVC liner is a sub-pan system. Traditional liners sit beneath a thick mortar bed, which can become saturated with stagnant water and harbor mold. The Gen II system sits directly under the tile, keeping the entire substrate dry and eliminating the "water-logged mud bed" problem.

Can the Gen II membrane be installed over drywall?

The Gen II membrane can be installed over various substrates, including cement backer boards and regular gypsum wallboard. However, the substrate must be clean, flat, and structurally sound. For wet areas, ensure the wall assembly meets local building codes. The membrane provides the actual waterproofing, but the underlying material must be stable enough to support the weight of the tile and mortar.

How do I perform a flood test on the Gen II system?

To perform a flood test, plug the shower drain and fill the pan with water to a level just below the top of the curb. Mark the water line and leave it for a full 24 hours. If the water level remains constant after this period, the system is verified as 100% leak-proof. This is a critical step to complete before tiling to ensure the integrity of the enclosure.
