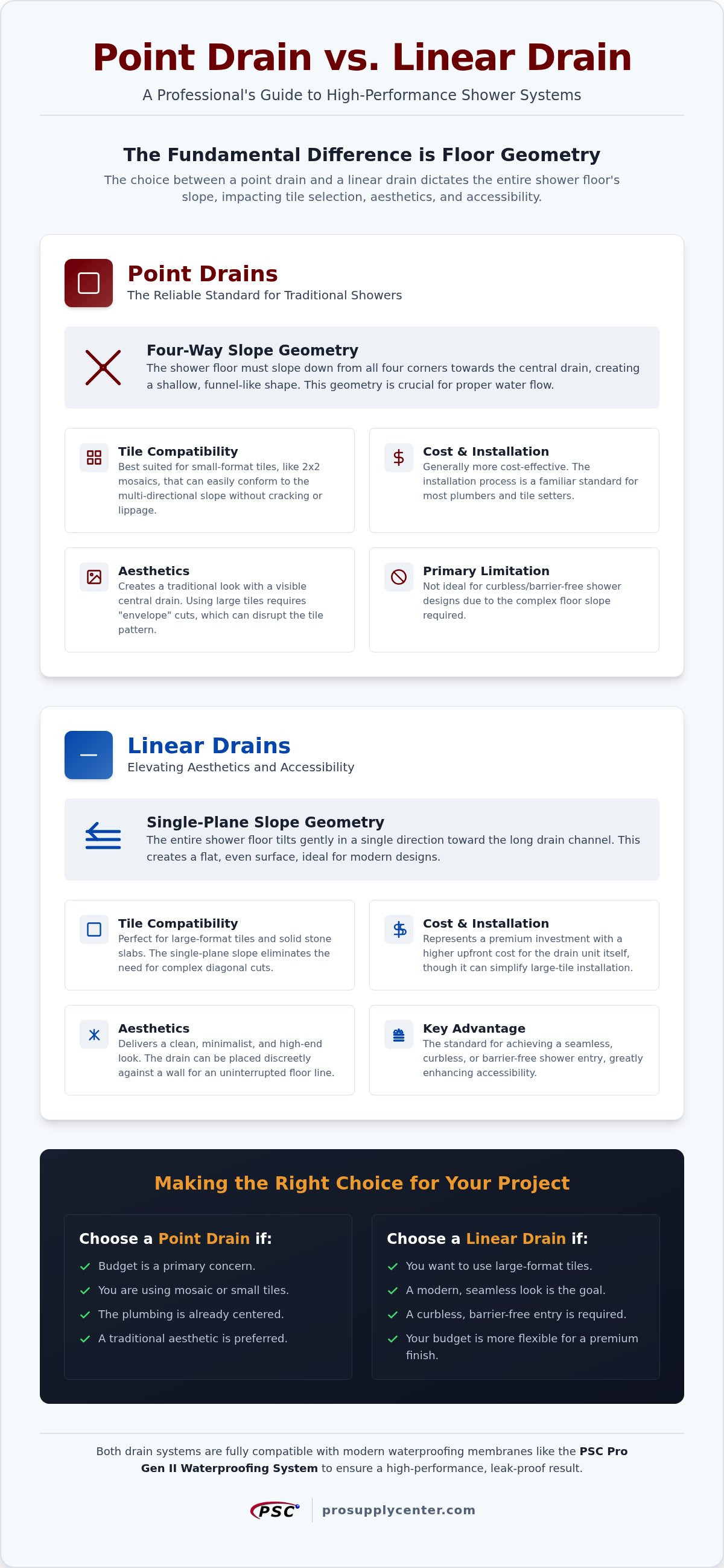

Point Drain vs. Linear Drain: A Professional Comparison for Shower Installations

Choosing a shower drain based solely on looks is the fastest way to compromise the structural integrity of your entire bathroom floor. It's common to feel overwhelmed by the technical requirements of floor slopes or the persistent fear of water pooling in the corners. You want a finish that looks high-end but functions without constant maintenance or hidden leaks.

The point drain vs linear drain debate isn't just about style. It's a fundamental decision that dictates your entire shower geometry. While a point drain requires a traditional four-way pitch, a linear drain allows for a single-slope floor that's perfect for large-format tiles. This choice affects everything from the subfloor preparation to the final waterproofing layers.

This guide provides a professional comparison to help you achieve a leak-proof, high-performance installation. We'll examine the specific slope requirements, cleaning challenges, and waterproofing integration needed to ensure your shower floor remains durable and efficient for years. By the end of this article, you'll have the technical knowledge to select the right drain system for any professional-grade project.

The Fundamentals: Defining Point Drains and Linear Drains

Understanding the core mechanics of a point drain vs linear drain is essential before you start your subfloor preparation. A point drain is the traditional system most people recognize; it's a square or circular grate usually positioned in the center of the shower floor. In contrast, a linear drain, also referred to as a Trench drain, is a long, narrow channel that collects water along its length. While both serve the same purpose, they require entirely different floor geometries and installation techniques to function correctly.

The primary technical difference lies in how you pitch the floor. Point drains require a multi-directional slope, while linear drains utilize a single-plane slope. This choice affects your tile selection, your plumbing layout, and your waterproofing strategy. Both systems are fully compatible with modern waterproofing membranes like the PSC Pro Gen II system, but the way you integrate those membranes depends on the drain's flange design and location.

The Four-Way Slope of Point Drains

Installing a point drain requires a "four-way pitch." This means the floor must slope downward from all four corners of the shower toward the central drain. From a geometric perspective, you're creating a shallow inverted pyramid. This specific shape creates a significant limitation: you can't easily use large-format tiles. If you try to lay a 12x24 tile on a four-way slope, it won't sit flat, leading to lippage where the edges of the tiles catch on your feet. To accommodate this bowl shape, installers typically use 2x2 mosaics or smaller tiles that can follow the contours of the slope without cracking or creating uneven edges. It's a traditional approach that's familiar to most plumbers and tile installers, making it a reliable standard for standard remodels.

The One-Way Slope of Linear Drains

Linear drains simplify the floor geometry by requiring only a one-way slope. Instead of pitching toward a center point, the entire shower floor tilts in a single plane toward the drain channel. This is a game-changer for modern aesthetics. Because the floor is flat rather than bowl-shaped, you can install large-format tiles or even solid stone slabs without complex diagonal cuts. This single-plane slope also makes linear drains the standard choice for curbless or barrier-free showers. It allows for a seamless transition from the bathroom floor into the shower area, removing the need for a traditional curb. This configuration is ideal for high-end designs where a clean, uninterrupted floor line is the priority.

Point Drains: The Reliable Standard for Traditional Showers

Point drains, often referred to as center drains, remain the workhorse of the industry. Their popularity isn't just a matter of habit; it's a result of mechanical simplicity and cost-efficiency. When you're weighing the point drain vs linear drain for a standard renovation, the point drain is often the most pragmatic choice. This is especially true if the existing plumbing stack is already centered. Moving a drain line in a concrete slab is a labor-intensive process that can quickly blow a budget.

These systems are highly effective at handling water volume. When properly sized for the waste line, they easily accommodate high-flow showerheads. According to Engineering Considerations for Linear and Point Drains, the hydraulic capacity of a standard point drain is more than sufficient for residential applications. Pro Supply Center stocks professional-grade shower drains in various finishes like matte black and brushed nickel to ensure your utility components match your high-end fixtures.

Advantages of the Point Drain System

Cost is the most significant advantage. The upfront price for the drain body and grate is typically much lower than a linear system. This makes it the go-to option for standard 36-inch or 48-inch shower footprints. It's also the best fit for traditional designs that utilize mosaic tile floors. Mosaics are flexible enough to follow the four-way pitch without the need for complex cuts or specialized layout planning. For a standard build where budget and reliability are the main drivers, this system is hard to beat.

Limitations to Consider

The biggest limitation is tile compatibility. You can't use large-format tiles with a point drain unless you're willing to accept "envelope" cuts. These diagonal cuts allow the tile to follow the slope, but they disrupt the visual flow of the floor and can look cluttered. The installation also requires precise mud bed work. If the four-way pitch isn't perfectly consistent, you'll deal with water pooling in the corners, which leads to mold and grout degradation. Some homeowners also find the center placement less than ideal, as the grate is often located exactly where you stand during use.

Linear Drains: Elevating Aesthetics and Accessibility

Linear drains have transitioned from high-end commercial projects into standard residential master suites. They represent more than just a sleek design choice. By utilizing a longer collection channel, these systems handle high water volumes with greater efficiency than traditional center drains. This is a critical factor for "spa" showers featuring multiple heads or high-pressure sprays. Whether you install them against the back wall, side wall, or at the shower entry, they provide superior drainage performance. In the point drain vs linear drain debate, the linear option is the clear winner for any project prioritizing both performance and modern aesthetics.

For projects focused on long-term accessibility or "aging in place," linear drains are essential. They facilitate a truly curbless shower entry. Because the floor slopes in a single plane, you eliminate the need for a physical curb to contain water. This design aligns with accessibility standards for shower slopes, providing a safe transition for users with mobility aids. It's a functional solution that doesn't sacrifice the room's visual appeal.

Why Designers Prefer Linear Solutions

Designers prioritize linear drains because they maintain visual continuity across the entire bathroom. You can use the same large-format tiles from the vanity area straight into the shower without interruption. Tile-in grate options take this a step further by allowing the drain to blend into the floor. This removes the traditional center visual break and allows the tile pattern to remain the focal point. It's a sophisticated way to handle a utility requirement while enhancing the overall room design.

Technical Benefits for Contractors

Contractors often find that linear drains streamline the installation process. Building a single-plane slope is significantly faster and less technically demanding than sculpting a precise four-way pitch. It also removes the need for complex "envelope" cuts. These diagonal cuts are often where installation errors occur and where visual patterns are ruined. By using a linear system, you can lay full-size tiles right up to the drain. This results in a cleaner finish and a more stable floor surface. When paired with a reliable system like the PSC Pro Gen II, it ensures a high-performance, leak-proof result.

Comparison Analysis: Making the Right Choice for Your Project

Choosing between a point drain vs linear drain isn't just a matter of aesthetic preference; it's a strategic decision based on budget, tile selection, and the desired entry style. For a standard remodel where the goal is a functional, cost-effective result, the point drain is the logical path. However, if your project involves a high-end curbless entry or large-format tiles, the linear drain becomes a technical necessity rather than a luxury. You'll need to weigh the upfront material costs against the long-term performance benefits of each system.

Maintenance is another critical point of comparison that installers often overlook. While some anecdotal reports suggest linear drains clog more frequently, the reality is often the opposite for professional-grade units. Modern linear drains typically include an internal debris basket. This basket sits directly under the grate, making it much easier to lift out and clean than a traditional center drain trap. Regular maintenance prevents hair and soap scum from reaching the deeper plumbing lines, which reduces the risk of long-term blockages and keeps the system running at peak capacity.

Cost Breakdown: Materials vs. Labor

It's a mistake to look only at the sticker price of the hardware. While a linear drain has a significantly higher purchase price than a point drain, the labor costs often tell a different story. Installing a point drain requires a time-intensive mortar bed that slopes from four different directions. This bowl shape also forces the tile installer to perform complex diagonal cuts to ensure the tile follows the slope without lippage. In contrast, the single-slope requirement of a linear drain simplifies both the mud bed preparation and the tile layout. In many cases, the labor savings on tile cutting can partially offset the higher material cost of the linear unit.

Tile Selection and Geometric Constraints

Your choice of tile often dictates the drain type for you. If you've selected 12x24 tiles or larger, a linear drain is almost always the superior technical choice. It allows you to maintain the integrity of the tile's visual pattern without breaking it up with envelope cuts. For smaller patterns like penny tiles or 2-inch hexagons, a point drain is perfectly suitable and often easier to center within the mosaic layout.

You must also consider the physical constraints of your subfloor. Before finalizing your choice, check the location of your existing floor joists. A linear drain requires a specific outlet location that may conflict with structural members, whereas a center drain offers more flexibility in tight plumbing scenarios. To find the right fit for your specific layout, browse our selection of professional shower drains to compare specifications and outlet locations.

Installation and Waterproofing Integration with PSC Pro Gen II

Regardless of which side of the point drain vs linear drain debate you land on, the integrity of the waterproofing membrane remains the most critical factor for a successful build. Even the highest-quality drain will fail if the connection to the shower pan liner isn't moisture-proof. The PSC Pro Gen II Waterproofing System is specifically engineered to create a seamless, high-performance bond with both point and linear flanges. This system provides the reliable foundation required to prevent common failure points that lead to structural rot and mold. It creates a monolithic barrier that handles the natural movement of the building without cracking or debonding over time.

Selecting a complete shower kit from Pro Supply Center ensures every component is fully compatible. These PSC Waterproofing Shower Kits remove the guesswork from the installation process. You won't have to worry about whether your thin-set will bond to the drain flange or if the membrane is thick enough to handle the specific geometry of your chosen drain. This "system" approach is what separates a professional-grade installation from a standard DIY project. It provides accountability and peace of mind for the contractor and the homeowner alike.

Best Practices for Point Drain Installation

When installing a point drain, you must set the grate height with extreme precision. It should be perfectly flush with the finished tile surface to ensure complete drainage and prevent water from pooling around the edges. The waterproofing membrane must be properly bonded to the drain's integrated flange using the appropriate sealant or thin-set as specified in the system instructions. Before you move on to final tiling, perform a flood test and check for capillary action around the drain throat. This step verifies that water won't "wick" into the subfloor through tiny gaps in the bonding layer. It's a simple test that prevents massive repair costs down the line.

Best Practices for Linear Drain Installation

Linear drains require a perfectly level channel to function as intended. If the trough itself isn't level, water will sit in the bottom of the drain rather than flowing toward the outlet; this leads to odor and biofilm buildup. Pay close attention to the waterproofing at the vertical corners where the wall meets the drain channel. These are the most vulnerable points for leaks in a single-slope system and often require specialized pre-formed corner pieces from the PSC system. Finally, use a professional Ceramic Tiles Leveling System to ensure the floor tile meets the drain edge without lippage. This prevents a "trip hazard" and ensures every drop of water moves efficiently from the tile surface into the collection channel without hitting a "dam" created by uneven tile edges.

Securing Your Shower Installation for Long-Term Performance

The decision between a point drain vs linear drain is a fundamental choice that impacts your floor pitch, tile selection, and overall project budget. Point drains remain a dependable, cost-efficient standard for traditional mosaic floors. Linear drains, however, represent the superior technical option for modern curbless entries and large-format tile layouts. Both systems require precise execution and a reliable moisture barrier to prevent costly subfloor damage.

By selecting high-performance components and following professional installation standards, you ensure a leak-proof result that withstands daily use. The PSC Pro Gen II Waterproofing System provides a dependable foundation for any drain style, offering industry-leading protection against moisture intrusion. Our expert-curated selection ensures you have the right materials for every technical challenge on the job site.

Browse Professional Shower Drains and Waterproofing Kits at Pro Supply Center and start your next project with confidence.

Frequently Asked Questions

Is a linear drain better than a center drain?

Neither system is inherently better; the choice depends on your specific installation goals. Linear drains are superior for curbless designs and large-format tiles because they only require a single-plane slope. Conversely, a point drain is the pragmatic choice for standard square showers where a four-way pitch is acceptable. If your priority is accessibility or modern aesthetics, the linear option is the professional standard. For basic remodels on a strict budget, the point drain remains highly effective.

Do linear drains require more maintenance than point drains?

Linear drains actually simplify maintenance when equipped with an internal debris basket. This basket sits just below the grate and captures hair and soap scum before they enter the plumbing lines. While a point drain requires you to reach into the trap, a linear drain basket is easily lifted out and rinsed. Regular cleaning is essential for both to prevent biofilm buildup, but the accessibility of modern linear channels often makes the process faster and more thorough.

Can I use large tiles with a center point drain?

You can use large-format tiles with a point drain, but it requires "envelope" cuts. These diagonal cuts allow the large tiles to follow the four-way pitch of the mortar bed toward the center. Without these cuts, the tiles won't sit flat, creating dangerous lippage and uneven edges. If you want to maintain the clean lines of large tiles without breaking the pattern, switching to a linear system is the technically correct solution for a single-slope floor.

How much more expensive is a linear drain installation?

The total cost of a linear drain installation involves balancing higher material prices against reduced labor time. While the drain unit itself is more expensive than a point drain, you often save time during the subfloor preparation and tile installation phases. Creating a single-plane slope is faster than sculpting a four-way pitch. Additionally, avoiding complex diagonal tile cuts reduces waste and labor hours, which helps offset the initial hardware investment in many professional projects.

Where is the best place to put a linear drain?

The best placement depends on your shower's plumbing layout and entry style. Placing the drain against the back wall is the most common choice for curbless showers, as it allows the entire floor to pitch away from the bathroom. You can also install it along a side wall or at the shower entry to act as a threshold. When comparing a point drain vs linear drain, the placement flexibility of the linear system is a significant advantage for custom layouts.

Do linear drains smell more than traditional drains?

Linear drains don't produce more odor than traditional drains if they're installed with a proper P-trap and maintained regularly. Smells usually occur due to biofilm buildup or hair trapped in the channel. Because linear drains have a larger surface area, they require periodic rinsing of the trough to prevent soap scum accumulation. Using a high-quality unit with a removable grate makes it easy to scrub the internal surfaces, ensuring the system remains sanitary and odor-free.

What happens if I don’t have enough floor depth for a linear drain?

If your subfloor lacks the depth for a standard linear channel, you should look for low-profile drain bodies specifically designed for thin-bed installations. Another option is to lower the subfloor between the joists, though this requires significant structural modification. In some cases, a point drain might be the only viable option if the existing slab or joist height cannot accommodate the necessary pitch for a linear system without creating a dangerous threshold at the shower entry.

Can I install a linear drain in an existing shower without moving the pipes?

It's rarely possible to install a linear drain without some plumbing modification. Most existing showers have a centered waste line, while linear drains typically require the outlet to be near a wall. While some linear models offer offset outlets, you'll still need to ensure the new drain body aligns with the existing P-trap. When evaluating a point drain vs linear drain for a retrofit, factor in the cost of concrete demolition or subfloor work needed to relocate the plumbing stack.
